Quick Answer: Torque requirements, not motor watts, should drive your impact wrench selection. As a general sourcing guideline, 340Nm to 550Nm models suit light automotive and general maintenance work; 1000Nm models handle standard wheel lug nuts and mid-size fasteners; 2000Nm and above are built for heavy truck, industrial, and disassembly work where bolts are torqued far beyond consumer specs. The YUTUO 21V cordless platform covers this entire range on one battery system, from the 340Nm impact screwdriver up to the 3/4-inch 2000Nm and 1-inch 3000Nm heavy-duty models.
1. Why Torque Rating Is the Wrong Place to Guess
For importers and distributors sourcing cordless impact wrenches, torque rating is the single most consequential spec — get it wrong and you either under-deliver on stuck lug nuts or over-spend on capacity your customers will never use. Unlike a drill, where chuck size and RPM tell most of the story, an impact wrench’s value proposition is almost entirely about how much rotational force it can deliver in short, repeated bursts.
YUTUO’s cordless impact wrench and impact screwdriver lineup spans four practical torque tiers, all built on the shared 21V platform:
| Model | Torque | Voltage | Motor | Output | Notes |
|---|---|---|---|---|---|
| YT-TQ-IS340 | 340 N·m | 21V | Brushless | 2300/min, 2900 IPM | Impact screwdriver, CE certified |
| YT-TQ-12W550 | 550 N·m | 21V | 500W | 2600 RPM, 3300 IPM | 1/2″ output |
| YT-TQ-12W1000 | 1000 N·m | 21V | — | Max disassembly torque 1100 N·m | 1/2″ output, M10–M22 standard bolts, M8–M16 high-strength bolts |
| YT-TQ-34W2000 | 2000 N·m | 21V | 1000W | — | 3/4″ output, M22–M42 bolt diameter |
| YT-TQ1IN2500 | 2500 N·m | — | — | — | 1″ output |
| YT-TQ1IN3000 | 3000 N·m | — | 2000W | — | 1″ output, heavy duty |
2. Rated Torque vs Disassembly (Breakaway) Torque
One of the most common sourcing mistakes is comparing two impact wrenches only by their headline torque number without checking whether that number is rated torque or disassembly torque.
- Rated (driving) torque is the force the tool can apply while fastening a bolt from a starting position.
- Disassembly (breakaway) torque is the peak force the tool can apply for a short burst to break loose a bolt that’s already seized, rusted, or over-torqued.
The YT-TQ-12W1000, for example, lists a 1000 N·m rated torque alongside a 1100 N·m maximum disassembly torque — the extra headroom is what actually frees a stuck lug nut or a corroded chassis bolt. When comparing specs across brands or suppliers, always confirm which number you’re looking at; a tool advertised on disassembly torque alone can look more powerful on paper than it is in daily fastening work.
3. Matching Torque Tier to Bolt Size and Application
340Nm–550Nm: Light automotive and general maintenance
The YT-TQ-IS340 impact screwdriver and YT-TQ-12W550 impact wrench cover routine passenger vehicle lug nuts, general assembly work, and light equipment maintenance. This tier is brushless, CE certified, and sized for all-day handheld use without excessive weight.
1000Nm: Standard wheel service and mid-size fasteners
The YT-TQ-12W1000 is built around a practical mid-size bolt range — M10–M22 for standard bolts and M8–M16 for high-strength bolts — which covers the vast majority of passenger and light commercial vehicle wheel service, along with general mechanical assembly where a 1/2-inch output is standard.

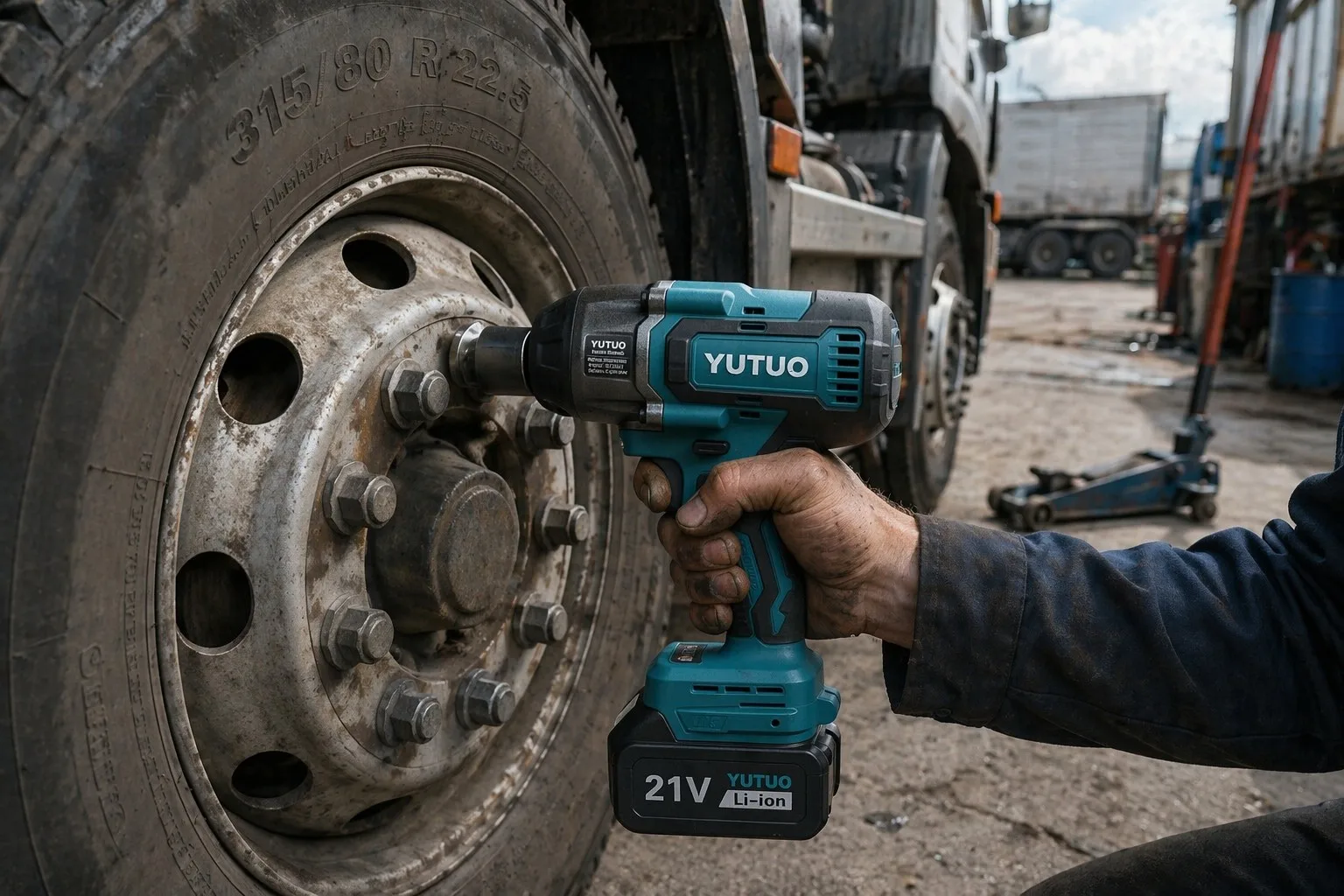

2000Nm–3000Nm: Heavy truck, industrial disassembly, and stuck fasteners
Once you move into the YT-TQ-34W2000 (3/4-inch output, M22–M42 bolt diameter) and the YT-TQ1IN2500 / YT-TQ1IN3000 (1-inch output), you’re in heavy-duty territory: truck and trailer wheel service, industrial equipment maintenance, structural steel assembly, and any application where bolts are routinely over-torqued, rusted, or seized. The 1-inch 3000Nm model runs on a 2000W motor specifically because breaking loose fasteners at this scale requires sustained peak output, not just a strong headline number.
4. Output Shaft Size: The Spec That Limits Your Socket Options
Torque rating and output shaft size are directly linked — you cannot pair a high-torque head with an undersized shaft without risking shaft failure or socket slippage under load.
| Output shaft | Typical torque range | Typical use case |
|---|---|---|
| 1/2 inch | Up to ~1000–1100 N·m | Passenger and light commercial wheel service, general assembly |
| 3/4 inch | ~2000 N·m | Heavy truck, industrial machinery, structural bolts (M22–M42) |
| 1 inch | 2500–3000 N·m | Heavy-duty industrial disassembly, large bolt diameters, seized fasteners |
When sourcing, always confirm that your socket inventory (or your end customer’s) matches the tool’s output shaft — a 1-inch drive tool paired with worn 1/2-inch adapters defeats the purpose of buying high-torque equipment in the first place.
5. Brushless Motor Advantage Across the Torque Range
Every tier in this lineup — from the 340Nm screwdriver to the 2000Nm 3/4-inch wrench — is built on brushless motor technology. For B2B buyers, the brushless advantage compounds as torque rating increases:
- Less heat generation under the repeated high-current bursts that high-torque impact work demands.
- Longer service life with no brushes to wear down from constant start-stop impact cycles.
- More consistent torque delivery as the battery discharges, which matters more on a 2000Nm tool doing back-to-back heavy fastener work than on a light-duty driver.
- Higher efficiency, translating to more fasteners driven per battery charge — a direct cost factor for fleet and shop buyers.
6. One Battery Platform, Four Torque Tiers
A core sourcing advantage of the YUTUO 21V cordless platform is that distributors and end users are not locked into separate battery ecosystems for light and heavy-duty tools. The same 21V battery — available in 2000mAh, 4000mAh, 6000mAh, and 9000mAh capacities, charged with matched 1A, 2A, or 4A chargers — powers the 340Nm impact screwdriver and the 2000Nm 3/4-inch impact wrench alike.
For importers building out a tool range, this “one battery, many tools” structure reduces the number of SKUs a distributor needs to stock and simplifies the value proposition to end customers: buy into one battery ecosystem, cover both light maintenance and heavy-duty disassembly work.
7. Common Sourcing Mistakes to Avoid
- Buying on watts alone. Motor wattage correlates with torque potential but doesn’t tell the full story — always confirm the actual N·m rating and whether it’s rated or disassembly torque.
- Ignoring output shaft compatibility. A high-torque head is wasted if your socket inventory doesn’t match the drive size.
- Underestimating bolt condition. Rusted or over-torqued bolts require closer-to-maximum disassembly torque, not just the rated driving torque — size up if your end use involves stuck fasteners regularly.
- Treating all “cordless impact wrenches” as interchangeable. A 340Nm impact screwdriver and a 3000Nm 1-inch impact wrench serve entirely different markets; bundling them under one generic listing undersells the heavy-duty tiers and oversells the light-duty ones.
8. FAQ: Cordless Impact Wrench Torque Selection
Q: What torque do I need for standard passenger vehicle wheel lug nuts?
A: Most passenger vehicle lug nuts fall well within the 1000Nm tier’s M10–M22 standard bolt range. A 550Nm–1000Nm impact wrench comfortably covers routine tire shop and roadside service work.
Q: When do I need a 3/4-inch or 1-inch output instead of 1/2-inch?
A: Move up to 3/4-inch (around 2000Nm, M22–M42 bolt diameter) or 1-inch (2500–3000Nm) output when working on heavy trucks, industrial equipment, or structural bolts where fastener diameter and torque requirements exceed what a 1/2-inch drive is rated to handle safely.
Q: Is disassembly torque or rated torque more important for sourcing?
A: Both matter, but for stuck, rusted, or over-torqued fasteners, disassembly (breakaway) torque is the number that determines whether the tool can actually free the bolt. Always ask suppliers to specify which figure they’re quoting.
Q: Can one 21V battery really power both a 340Nm screwdriver and a 2000Nm wrench?
A: Yes — the YUTUO 21V platform is designed so the same battery pack (available in 2000mAh–9000mAh capacities) powers tools across the full torque range, reducing the number of separate battery ecosystems a distributor needs to support.
Q: Why choose brushless over brushed for high-torque impact tools?
A: Brushless motors handle the repeated high-current impact bursts of heavy-duty fastening with less heat buildup and longer service life, which becomes increasingly important as torque rating — and therefore current draw — increases.
9. B2B Sourcing Recommendation
For distributors building a cordless impact wrench range, a practical starting lineup covers all four tiers:
- Entry/light duty: YT-TQ-IS340 (340Nm impact screwdriver) for general maintenance and light automotive work.
- Standard duty: YT-TQ-12W550 or YT-TQ-12W1000 (550Nm–1000Nm, 1/2″ output) for the bulk of passenger and light commercial wheel service.
- Heavy duty: YT-TQ-34W2000 (2000Nm, 3/4″ output) for truck and industrial maintenance.
- Extreme duty: YT-TQ1IN2500 / YT-TQ1IN3000 (2500–3000Nm, 1″ output) for heavy industrial disassembly and severely seized fasteners.
All four tiers share the 21V battery platform, brushless motor construction, and CE/UKCA/FCC certification support (SKU-dependent) — making them straightforward to bundle into a single distributor catalog rather than sourcing separate brands per torque tier.
Looking to build out a complete cordless impact wrench range for your market? Contact YUTUO Technology for OEM/ODM options, torque tier recommendations, and certification documentation (CE/UKCA/FCC/RoHS/UN38.3/MSDS available by SKU).
